RIPPLE 60 FLOW WOOD PANEL


ABOUT

Designed for both flat and curved applications, Ripple 60 Flow brings sculptural depth and natural warmth to interior spaces through its softly scalloped profile and genuine Black Walnut veneer.

Constructed with an MDF core and ply backing for improved stability, the panel is engineered to accommodate concave and convex surfaces while maintaining a refined, seamless appearance across the installation.

Ripple 60 Flow is supplied raw and ready for finishing, allowing the final appearance to be tailored through oils, stains, or clear coatings to suit the project palette and surrounding materiality.

Supported by a coordinated trim system, including matching bullnose trim, square trim, edges, curves, and corner trims. Allowing for a fully resolved, seamless finish across the entire installation.


SPECIFICATIONS

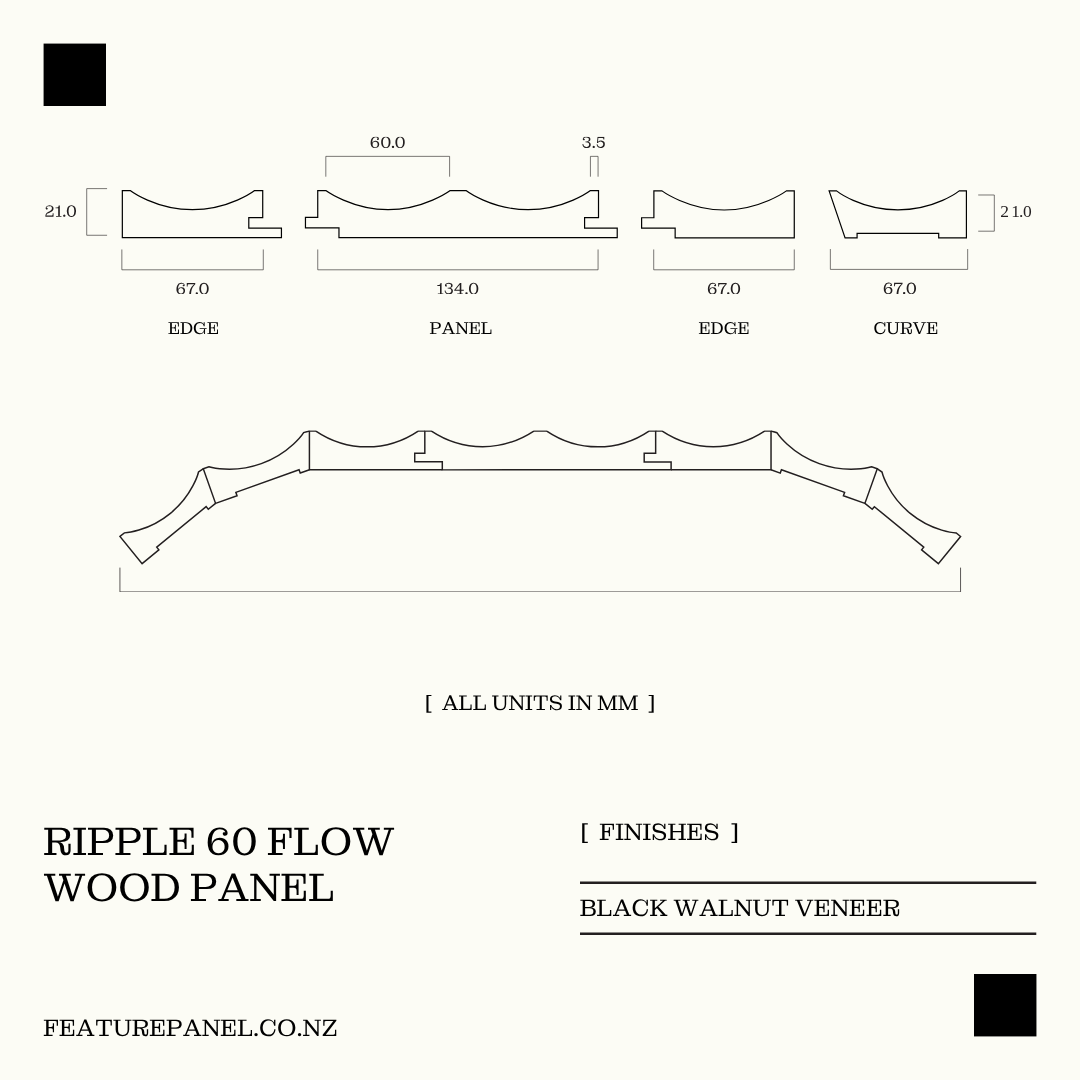

  • Profile: Ripple 60 Flow  [  BLACK WALNUT  ]

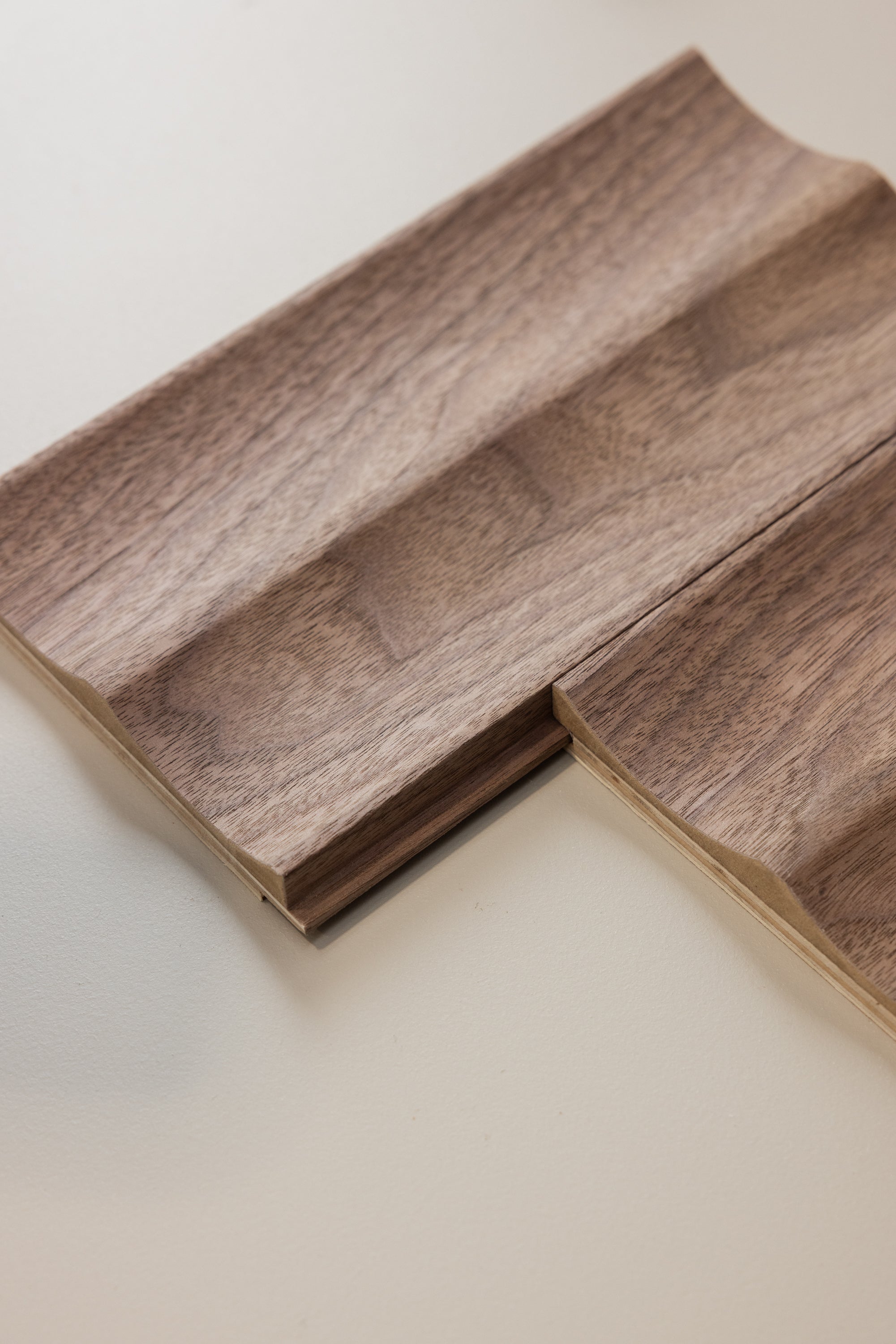

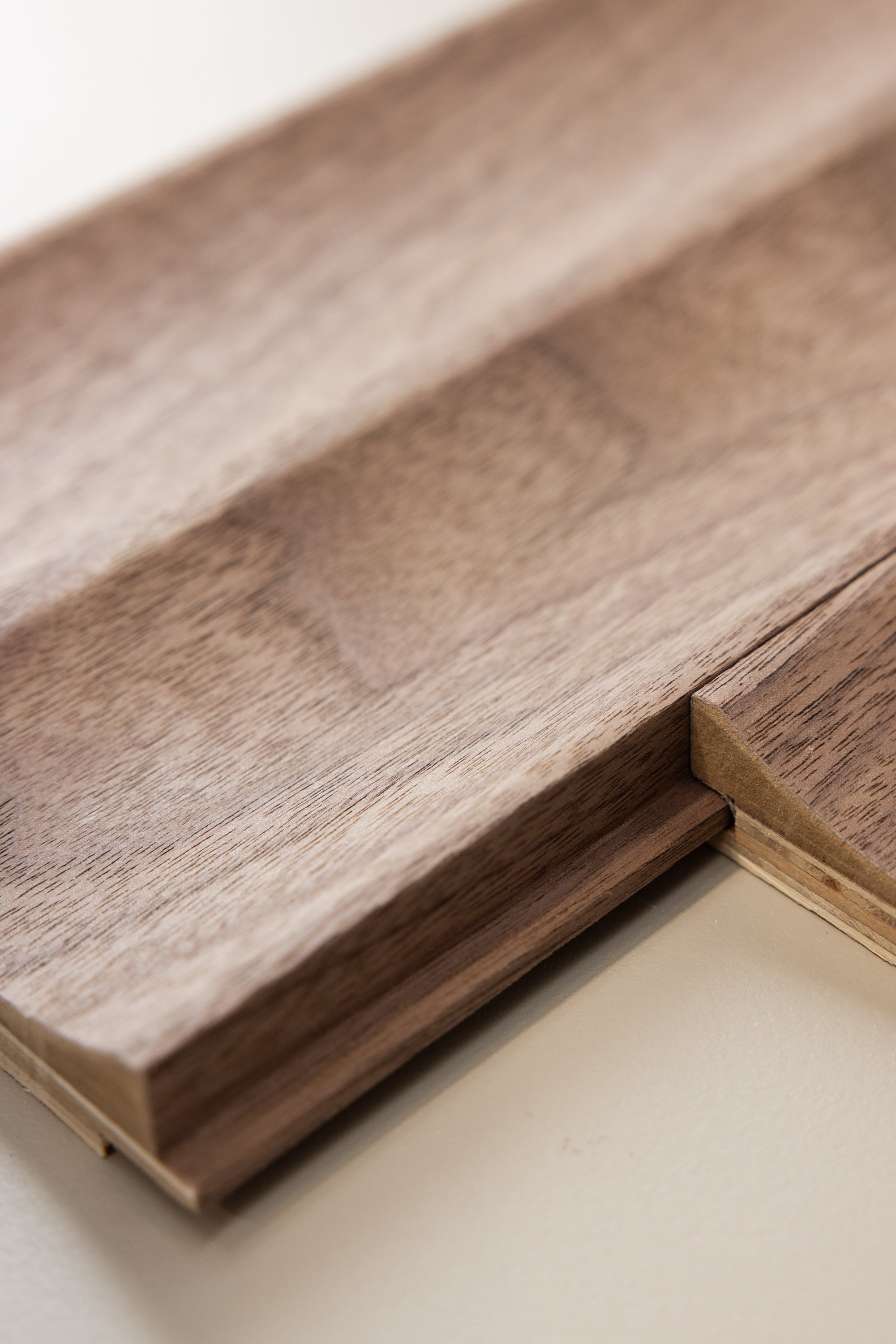

  • Material Composition: Raw Black Walnut veneer, MDF core, ply backing with factory-coated clear on the reverse side for stability.

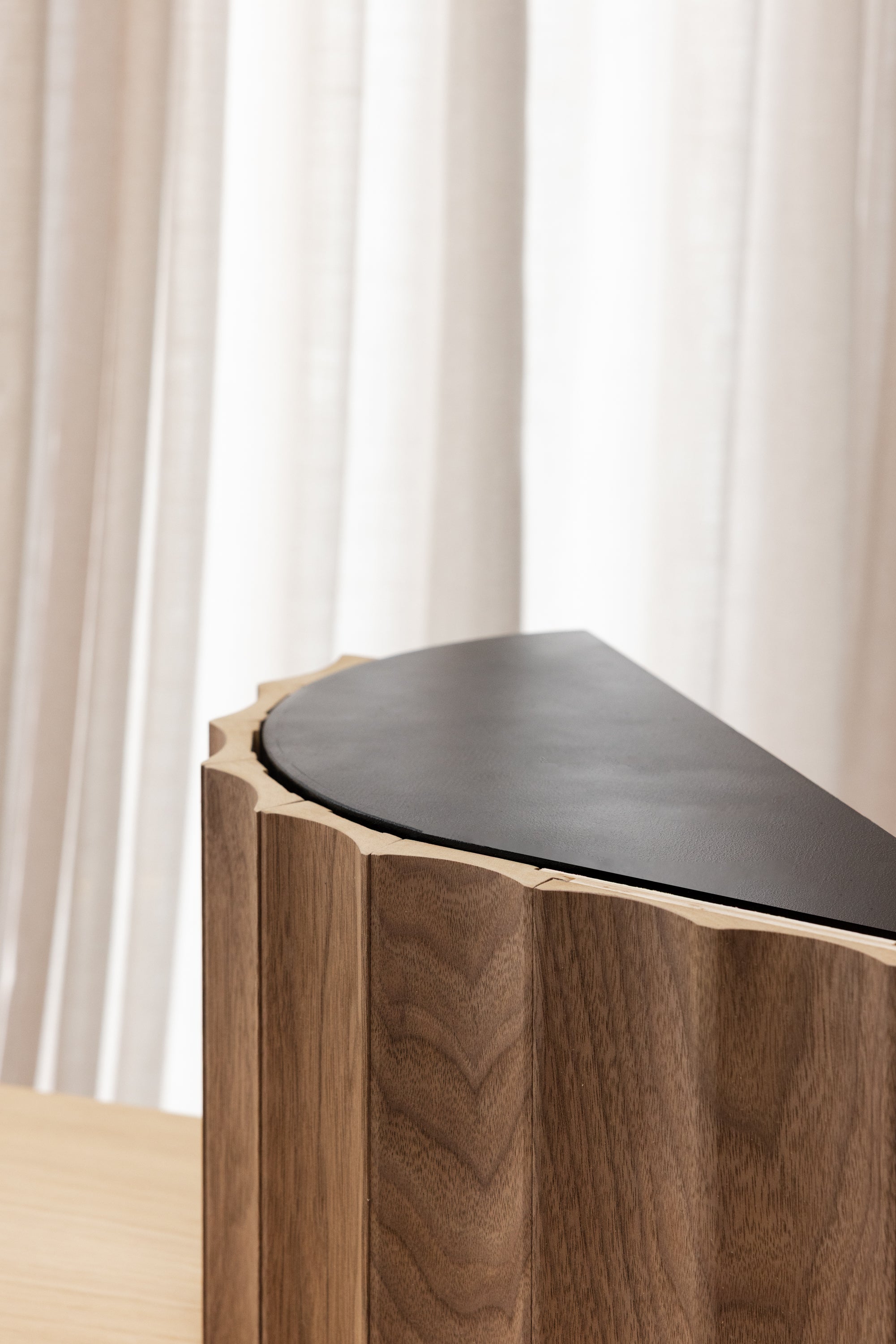

  • Application: Suitable for flat, concave, and convex interior surfaces.
  • Finish: Raw veneer, ready for oiling, staining, tinting, or clear coating.
  • Curving Capability: Recommended minimum radius: 300mm (600mm diameter)
  • Natural Variation: Natural timber veneer will feature tonal, grain, and colour variation between panels.
  • Coverage: 134mm installed face coverage × 2730mm panel length.
  • Trimming Allowance: Allow approximately 10mm trimming from each panel end during installation.
  • Fire Performance: Suitable for achieving Group 1-S fire performance when used in conjunction with an approved intumescent coating system. Contact us for technical documentation and project-specific recommendations.


ACCESSORIES

Compatible with matching

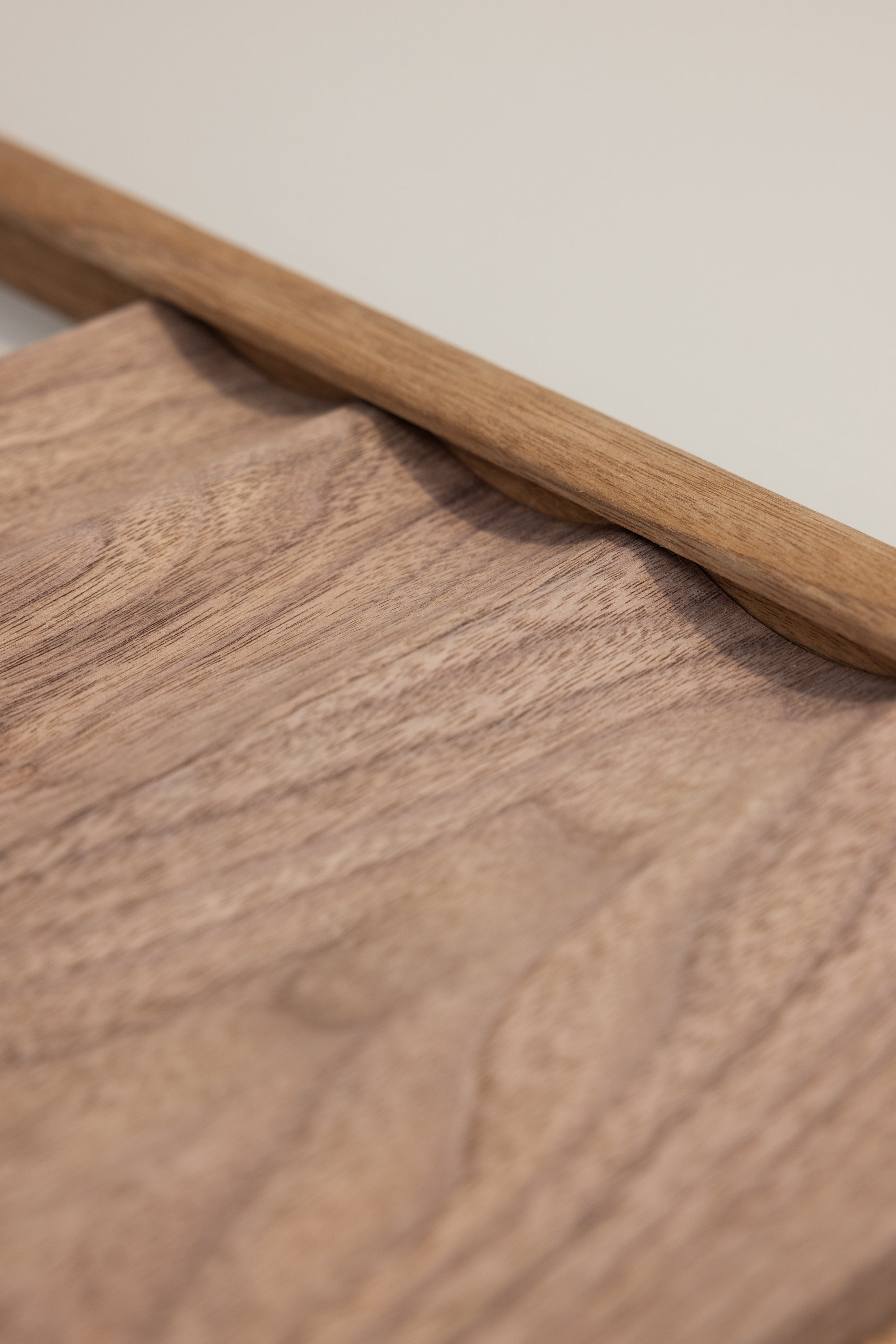

For exposed edges and finishing details, matching veneer edge banding and solid timber trims are available to help achieve a refined, cohesive installation outcome.

Installation: For installation guidance, adhesive recommendations, fixing methods, and curved installation techniques, please refer to the installation guide.

Download: Installation Guide


TIMBER & FINISH NOTES

We recommend ordering samples prior to purchase to experience the material, tone, and profile in your own space and lighting conditions.

Unless otherwise specified, veneer and solid timber panels are supplied in a raw, unfinished state, allowing the final finish to be tailored to suit your project. Please note that imagery shown across our website and project photography may feature panels that have been oiled, stained, tinted, or clear-coated after installation.

As with all natural timber products, variation in grain, tone, and colour is to be expected and forms part of the unique character and beauty of the material.


DELIVERY

Please note that exceptions may apply for orders of significant size or where site access is restricted. In these cases, additional freight costs may be incurred, including the potential requirement for a hiab or other specialised delivery services.

Clear, flat access required for delivery: 7.7m (L), 3.3m (H), 2.5m (W)
An additional delivery fee may apply if access is restricted

SKU COVERAGE (W x H) THICKNESS (MM) RRP EX-GST
PANEL - R60FBW2730 134 x 2730mm 21mm $77.39

EDGES - R60FBW2730EDGE
*Set of 2

 67 x 2730mm 21mm $77.39
CURVE - R60FBW2730CURVE 67 x 2730mm 21mm $42.61

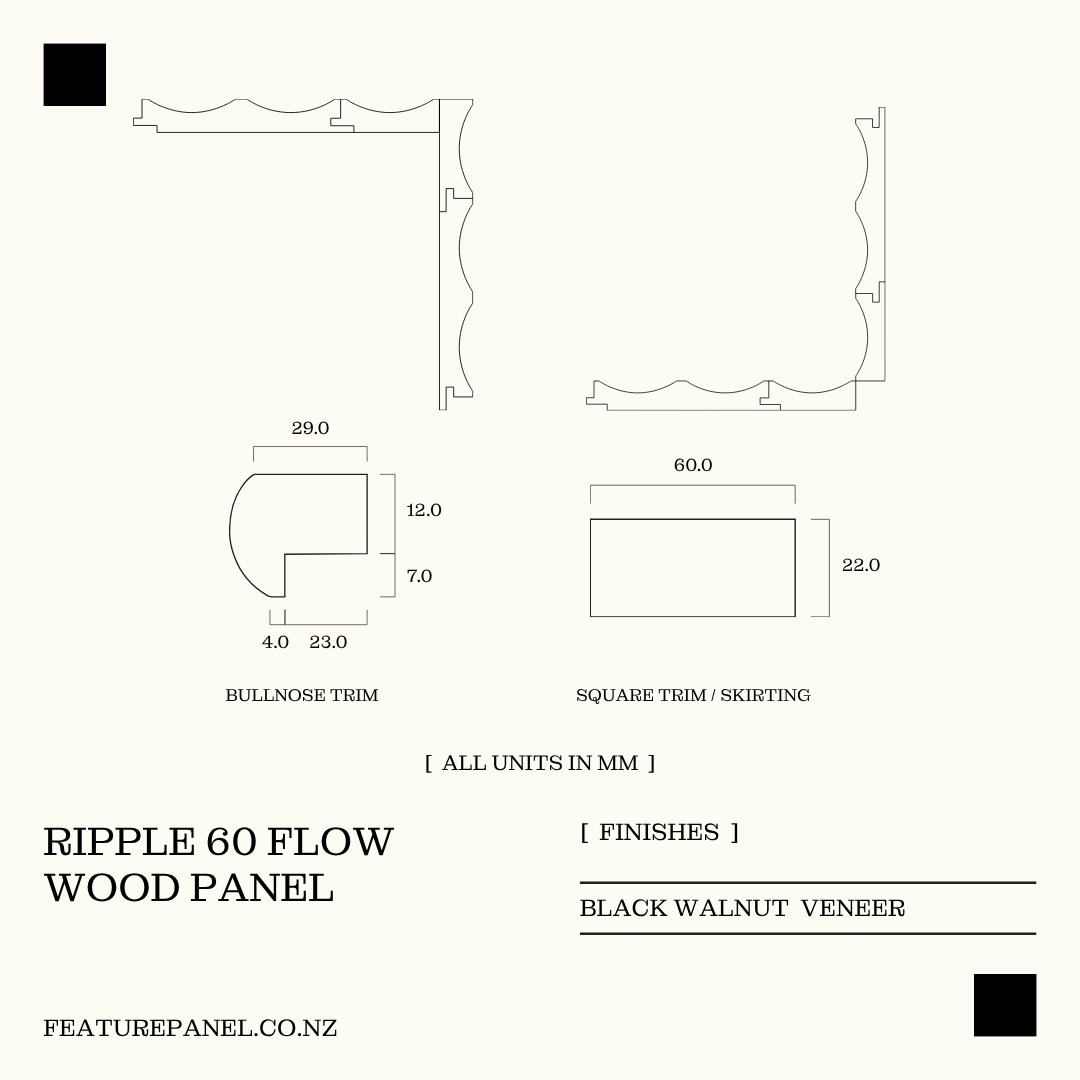

BULLNOSE TRIM - BNBW2730 29 x 19 x 2730mm 29mm $39.13
SQUARE TRIM - SQBW2730 60 x 22 x 2730mm 22mm $47.83

*Prices in the table above are GST-exclusive

NOT SURE WHAT YOU NEED?


Send through your project details, preferred profile, and we’ll help guide you through the process with a tailored quote and practical advice

CONTACT US
